Extracting Video from RTP Streams Using Wireshark

A comprehensive guide to intercepting and extracting video streams from RTP packets using Wireshark in a Man-in-the-Middle scenario.

0xDev

7 min read

Wireshark RTP Stream to Video Extraction Guide

Overview

This guide demonstrates how to intercept and extract video content from RTSP (Real Time Streaming Protocol) streams using Wireshark. RTSP is commonly used for streaming media applications but lacks encryption by default, making it vulnerable to Man-in-the-Middle (MitM) attacks, unlike its secure counterpart RTSPS.

Understanding the Technology

RTSP vs RTSPS

Understanding the difference between these protocols is crucial for this guide:

Control Layer:

  • RTSP (Real Time Streaming Protocol): The unencrypted control protocol operating on port 554. It handles commands like play, pause, and stop, but transmits all information in plaintext
  • RTSPS: The secure version of RTSP that encrypts all control commands using TLS/SSL, protecting the session from eavesdropping

Media Transport Layer:

  • RTP (Real-time Transport Protocol): The protocol that actually carries the compressed video and audio data over the network. Importantly, RTP is not encrypted by default, even when using RTSPS
  • SRTP (Secure Real-time Transport Protocol): The encrypted variant of RTP that adds encryption, authentication, and integrity checks to the media stream

Video Compression:

  • H.264: The video codec (compression standard) used to compress video data. This is what gets packaged into RTP packets and is commonly found in IP cameras and streaming applications. Also known as AVC (Advanced Video Coding)

Key Insight: In this guide, we're exploiting unencrypted RTP streams, which remain vulnerable even if the RTSP control layer uses RTSPS encryption.

How RTP Streams Work

To understand how to extract video from RTP streams, you first need to know what an RTP packet contains:

RTP Packet Structure:

  • Header: Contains metadata like version, sequence number, timestamp, and synchronization source (SSRC) ID
  • Payload Type: A field that identifies what type of data the packet contains (e.g., H.264 video at type 96)
  • Payload: The actual compressed video data (H.264 encoded frames or frame fragments)
  • Marker Bit: A flag indicating the end of a frame or important boundary

When RTP streams are captured, they must go through a processing workflow:

  1. Captured from the network: Wireshark intercepts RTP packets on the wire
  2. Identified by payload type: We determine which codec is being used (H.264, H.265, MJPEG, etc.)
  3. Reassembled into a playable video format: Fragment packets are reassembled back into complete frames
  4. Decoded using appropriate codecs: The compressed video data is decompressed into viewable footage

Installation and Setup

Step 1: Configure Wireshark Plugin Directory

  1. Launch Wireshark with administrative privileges
  2. Navigate to Help → About Wireshark → Folders
  3. Locate the entry labeled "Personal Lua Plugins"
  4. Copy the directory path
  5. Open the directory
  6. Create a plugins folder if it doesn't already exist

Step 2: Install the RTP H.264 Extractor Plugin

  1. Download the extraction script:

  2. Install the plugin:

    • Copy rtp_h264_extractor.lua to your Personal Lua Plugins folder
    • Ensure the file has a .lua extension

  3. Verify installation:

    • Restart Wireshark completely
    • Navigate to Help → About Wireshark → Plugins
    • Confirm rtp_h264_extractor.lua appears in the plugin list

Step 3: Enable RTP Protocol Analysis

  1. Access protocol settings:

    • Go to Analyze → Enabled Protocols
    • In the search box, type rtp

  2. Enable all RTP-related protocols:

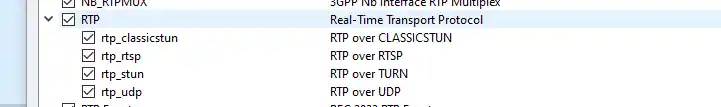

RTP Protocol Configuration

  1. Apply settings and close the dialog

Capturing RTP Streams

Step 4: Start Packet Capture

  1. Select the network interface:

    • Choose the interface connected to your target network

  2. Apply the RTP filter:

    • In the display filter bar, type: rtp
    • Press Enter to apply the filter

  3. Begin capturing:

    • Start packet capture
    • Generate or wait for RTP traffic from your target

Step 5: Identify Payload Type

  1. Select an RTP packet from the capture
  2. Expand the packet details:
    • Look for the "Real-Time Transport Protocol" section
    • Locate the "Payload type" field
    • Note the payload type number (e.g., "Unassigned (35)")

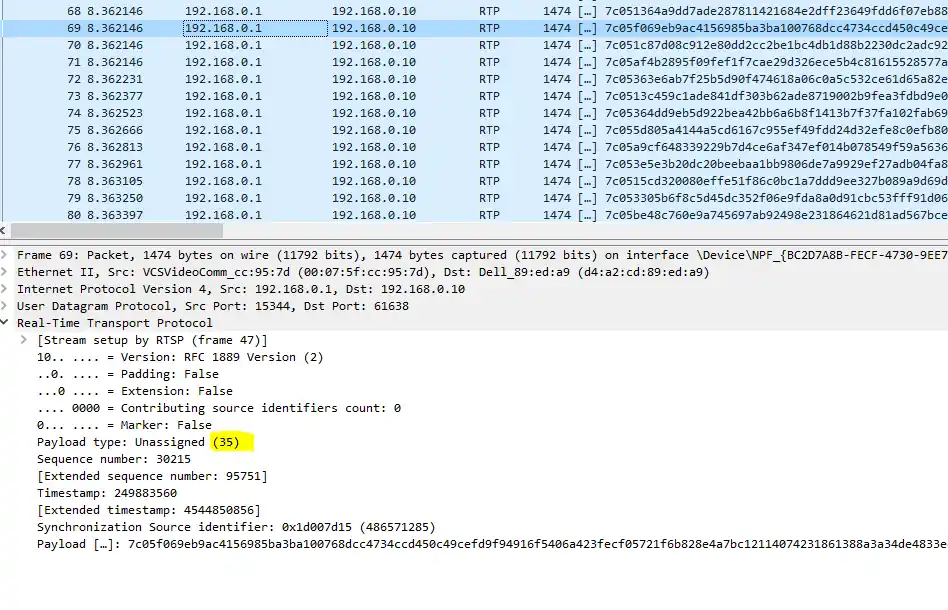

Payload Type Identification

Why is this important?

  • Wireshark doesn't automatically recognize proprietary or dynamic payload types
  • Manual configuration ensures proper video codec identification
  • Different cameras and streams may use different payload type numbers

Step 6: Configure H.264 Payload Mapping

  1. Access Wireshark preferences:

    • Navigate to Edit → Preferences
    • Expand Protocols in the left panel
    • Scroll down and select H.264

  2. Configure the payload type:

    • In the "Dynamic payload types" field, enter your payload number
    • Example: If your payload type was 35, enter 35
    • Click OK to save

  3. Verify the configuration:

    • Return to your packet capture
    • RTP packets should now display "H.264" in the Protocol column

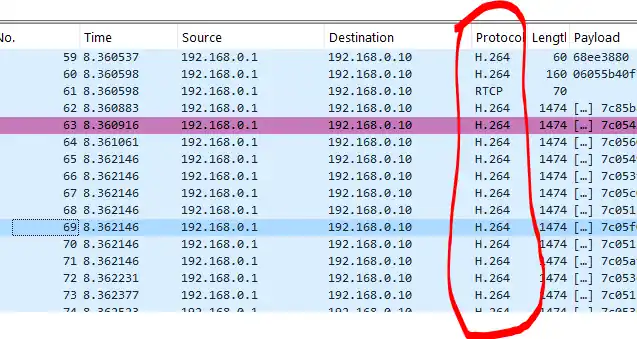

H.264 Protocol Recognition

Extracting Video Content

Step 7: Extract the Video Stream

  1. Access the extraction tool:
    • Go to Tools → Extract H264 stream from RTP
    • A new dialog window will appear

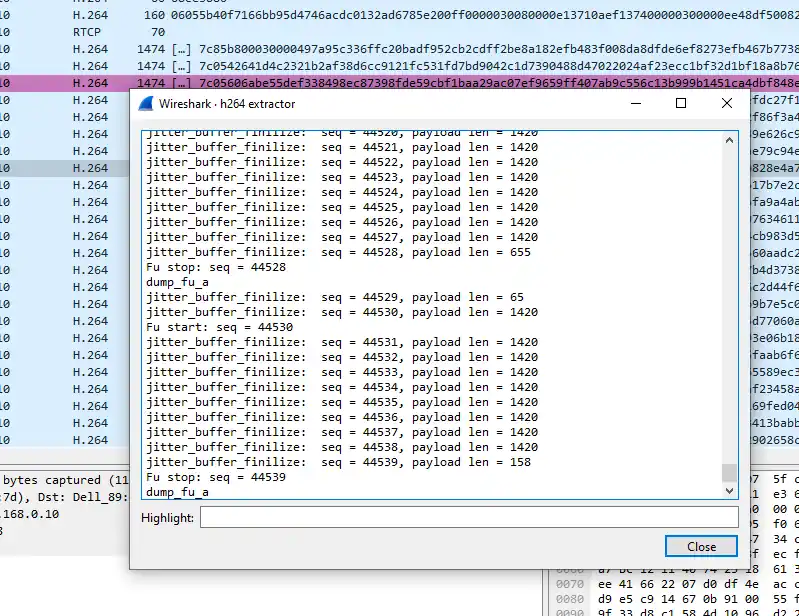

Video Extraction Interface

  1. Locate the extracted video:
    • The output path will be displayed upon completion
    • Navigate to the specified directory
    • Look for files with the .h264 extension

Step 8: Play the Extracted Video

  1. Open with VLC Media Player:

    • Right-click on the extracted video file
    • Select "Open with" → "VLC Media Player"

  2. Alternative players:

    • FFplay (part of the FFmpeg toolkit)
    • Media Player Classic
    • Any player supporting H.264 raw streams

Example Output

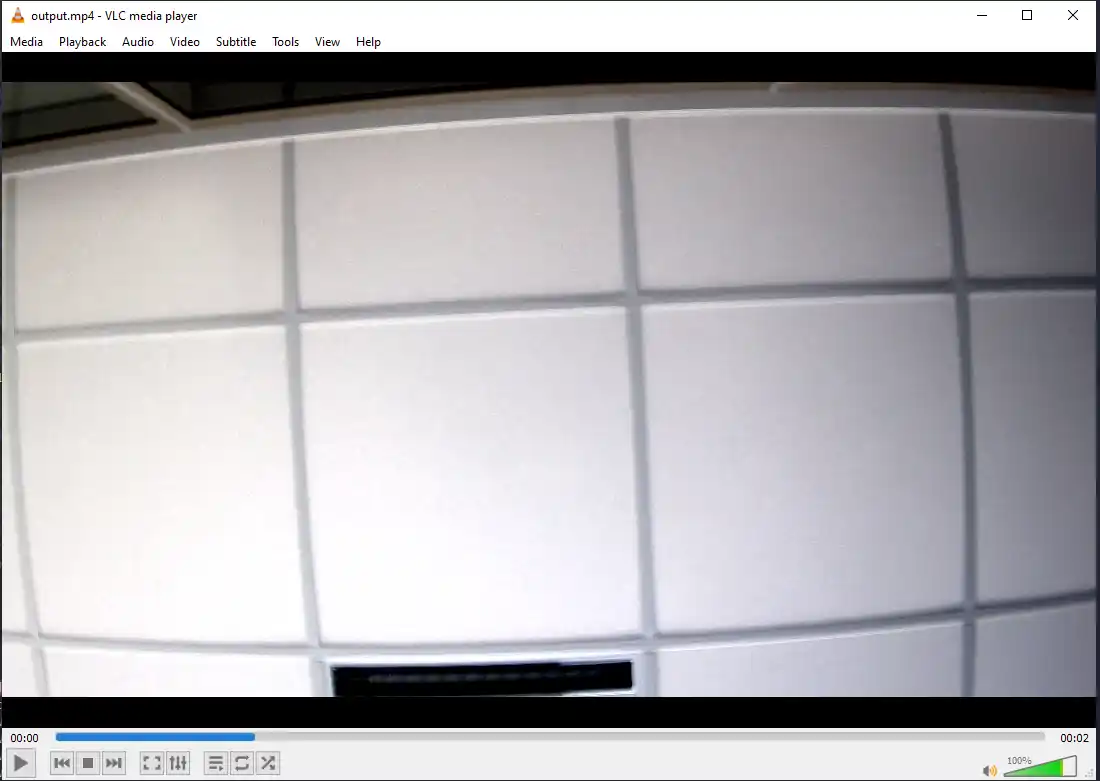

This is a screenshot of the extracted video playback in VLC Media Player.

Extracted Video Playback

Troubleshooting

Common Issues and Solutions

Problem: No RTP packets visible

  • Solution: Check the network interface selection and ensure you're on the correct network segment
  • Solution: Verify that the RTSP stream is active and generating traffic

Problem: Payload type shows as "Unknown"

  • Solution: Manually configure the payload type in H.264 preferences
  • Solution: Check if the stream uses a different codec (H.265, MJPEG, etc.)

Problem: Extracted video won't play

  • Solution: Try different video players
  • Solution: Convert using FFmpeg: ffmpeg -i input.h264 -c copy output.mp4
  • Solution: Check if the extraction completed without errors

Problem: Plugin not loading

  • Solution: Verify the Lua script is in the correct directory
  • Solution: Check file permissions and ensure Wireshark has read access
  • Solution: Restart Wireshark as administrator

If you're interested in extracting video from IP cameras, you should also check out my comprehensive IP Camera Penetration Testing Guide. This guide covers the full scope of camera security testing, including:

  • Reconnaissance techniques for discovering cameras on the network
  • Vulnerability assessment and exploitation methods
  • Network traffic analysis to identify unencrypted streams
  • Firmware analysis and hardcoded credential extraction
  • Remediation strategies for securing camera deployments

The IP camera pentesting guide pairs perfectly with this RTP extraction guide - while this guide focuses on analyzing captured RTSP/RTP traffic, the camera pentesting guide shows you how to identify and gain access to camera systems in the first place, ultimately allowing you to capture those streams for analysis.

Conclusion

Extracting video from RTP streams using Wireshark is a powerful technique for understanding RTSP traffic vulnerabilities. By following this guide, you can:

  • Intercept and analyze unencrypted video streams
  • Understand how RTP packets are structured and transported
  • Extract raw H.264 video data from network traffic
  • Reconstruct playable video files from captured packets

This knowledge is invaluable for security professionals conducting network assessments and identifying insecure media streaming implementations. Always ensure you have proper authorization before capturing and analyzing network traffic.
